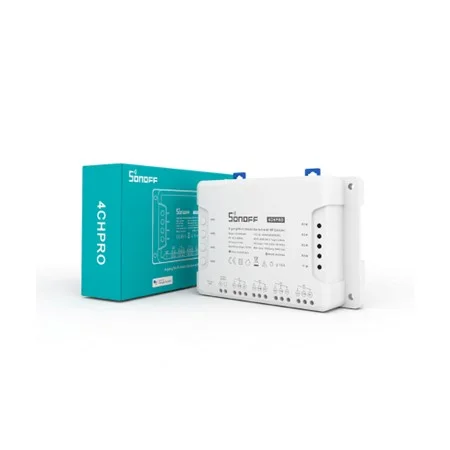

Sonoff 4CH Pro R3 Smart Switch WiFi and RF

Description

Description
Sonoff 4ch Pro R3
Firstly Sonoff 4CH Pro R3 is a 4-gang Wi-Fi Smart Switch with RF control. It is designed to give you the ability to integrate smart control into your existing home. It has 4 gangs that can be used to control lights as well as other home appliances at the same time in four areas of your home. Additionally there is a major difference between 4CHR3 and 4CHPROR3, which is 4CHPROR3 is designed with an additional function for RF control. However the function is purposely adopted to allow you to turn on/off the devices connected with 4CHPROR3 via the RM433 remote controller.
Compared with 4CH PRO R2, you can access self-locking, interlock as well as inching mode on APP directly.
The new improvement is for users to set these 3 working modes on eWeLink APP instead of the hardware itself, furthermore making it easier to operate.
Furthermore you can enable self-locking mode to turn on/off 4 connected devices independently, interlock mode to turn on 1 connected device every time and turn off the rest of devices simultaneously and inching mode to turn on 1 connected device and then make it turn off automatically after a given time (0.5 – 3600s).

Features
• Remotely control connected lights or devices via APP
• 3 working modes with self-locking, interlock and inching mode
• Support scheduling a timer to make devices automatically start and stop to work
• Customize smart scenes to make the device connected with the switch to trigger other devices
• Share the control permission of devices to other accounts to control together
• Check real-time ON/OFF status of devices on your mobile phone
• Power on state allows users to set the On/Off/Keep status for the connected device before power failure and ensure it remains the arranged status after power restoration
• RF Control
• DC Input

LoA and Icasa approved.
LoA Certificate Number: 162299, Additional information
Weight 0.01 kg
Dimensions 1 × 1 × 1 cm
Brand Sonoff
GTIN 6920075775815, Specifications
• Voltage Range: 100-240V AC 50/60Hz(DC: 9-23V)
• Max. Load: 10A/2200W/Gang 40A/8800W/Total
• Wireless Frequency: WiFi 2.4GHz
• Wireless Standard: IEEE802.11 b/g/n 2.4GHz2.4GHz(2400M-2483.5M);&nbsp
• Security Mechanism: WPA/WPA2
• Enclosure Material: PCV0
• Gang: 4
• Dimension:145*90*34 (mm)
• Operating Temperature(recommended): -10ºC-40ºC(14°F-104°F)
• Operating Humidity: 5%-95%RH, Non-condensing
